Electro-Hydraulic Training System QME-TL008 | Advanced Hydraulic Training Bench

1/ Comprehensive Hydraulic Education Solution by QME

The Electro-Hydraulic Training System QME-TL008 is a professional educational platform engineered and assembled directly by QUANG MINH EQUIPMENT CORPORATION (QME). Complying with QME ISO 9001:2015 quality standards, this equipment is optimally designed for technical universities, colleges, and vocational training centers. The system bridges the gap between theoretical physics and industrial application, enabling students to engage in both basic hydraulic exercises and complex electrically controlled hydraulic drives.

2/ Outstanding Technical Specifications of the QME-TL008 Training Bench

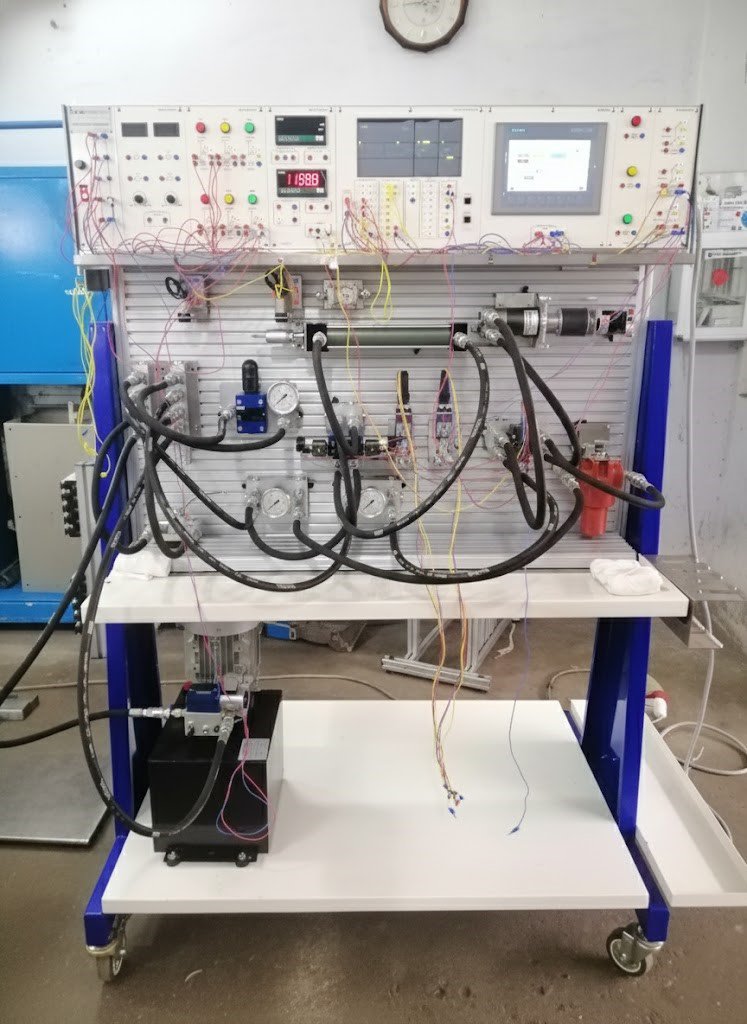

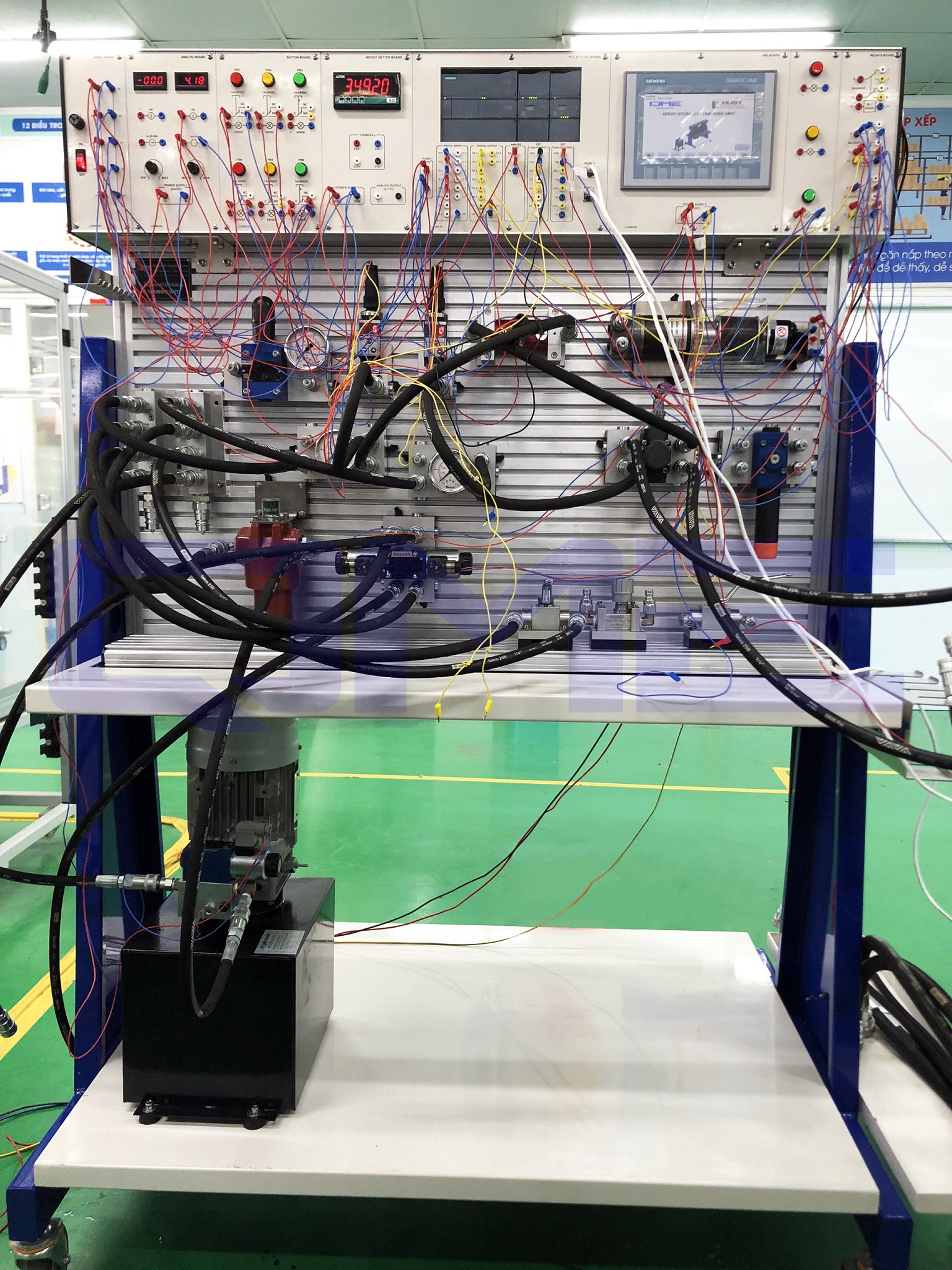

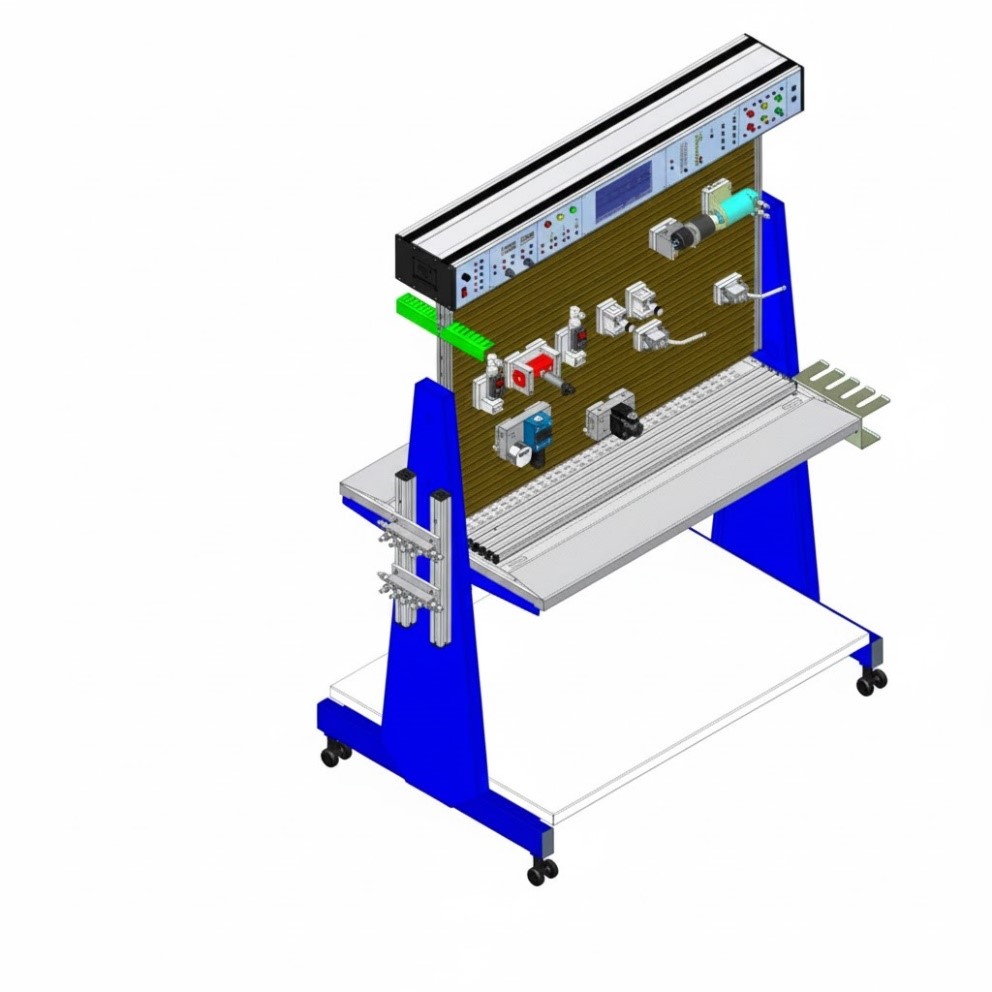

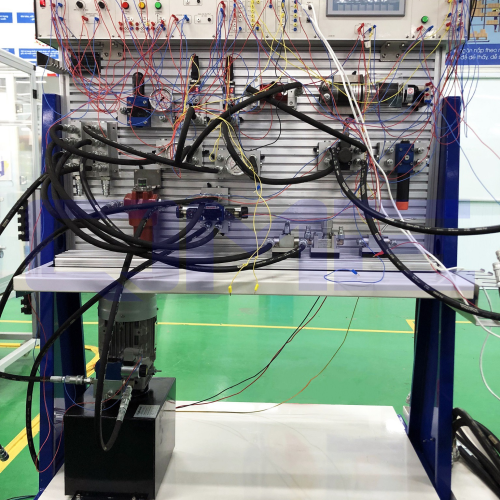

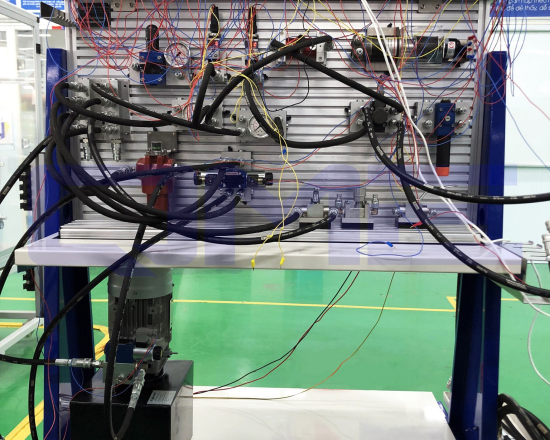

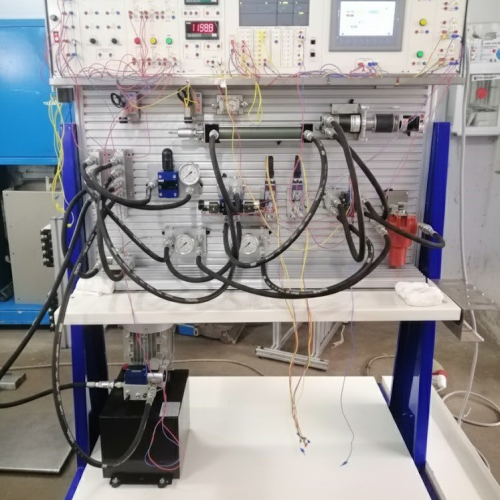

Each advanced hydraulic training bench features a robust design (1250x800x1800 mm), providing ample workspace for up to 10 students simultaneously. The system integrates premium international industrial components:

• - Robust Hydraulic Power Unit: Equipped with a 1.5 kW motor (1 phase, 230 V), delivering a pump flow rate of 7 liters/min and a maximum working pressure of 180 bar.
• - European Standard Valve System: Fully equipped with genuine Bosch Rexroth components, including pressure control valves, 4/2 & 4/3 directional valves, and proportional hydraulic servo valves.
• - Smart Control System: Includes a DELL PC for programming tasks, complemented by a Siemens PLC module and HMI display, offering extensive connectivity with various microcontrollers.
• - Premium Accessories: Utilizes high-pressure Alfagoma (Italy) hydraulic hoses (up to 400 bar), along with precision pressure gauges and flow meters.

3/ Diverse Practical Training Curriculum

The QME-TL008 hydraulic training equipment supports a wide range of practical scenarios, ensuring students master:

• - Basic Hydraulics: Component identification, basic circuit operation, and measuring characteristics of flow, velocity, and pressure acting on hydraulic cylinders.
• - Electrical Drive Control: Hands-on experience with pressure switches, throttle circuits, high-flow circulation circuits, and advanced linear control using hydraulic servo valves.

4/ Contact for Manufacturing & Technical Consultation

QME is proud to successfully manufacture high-tech educational systems that meet global standards. For in-depth technical consultation and customized design solutions tailored to your institution's specific requirements, please contact us:

• QUANG MINH EQUIPMENT CORPORATION
• - Address: 127 Huy Can, Gia Hoa Residential Area, Phuoc Long Ward, HCM City
• - Email: info@qme.vn
• - Website: www.qme.vn
